1993 Toyota Supra GZ Twin Turbo (Auto).  This car was imported from Japan 2 years ago and has had one UK owner.  It comes with full Japanese service history (obviously in Japanese) and recepits since in the UK.

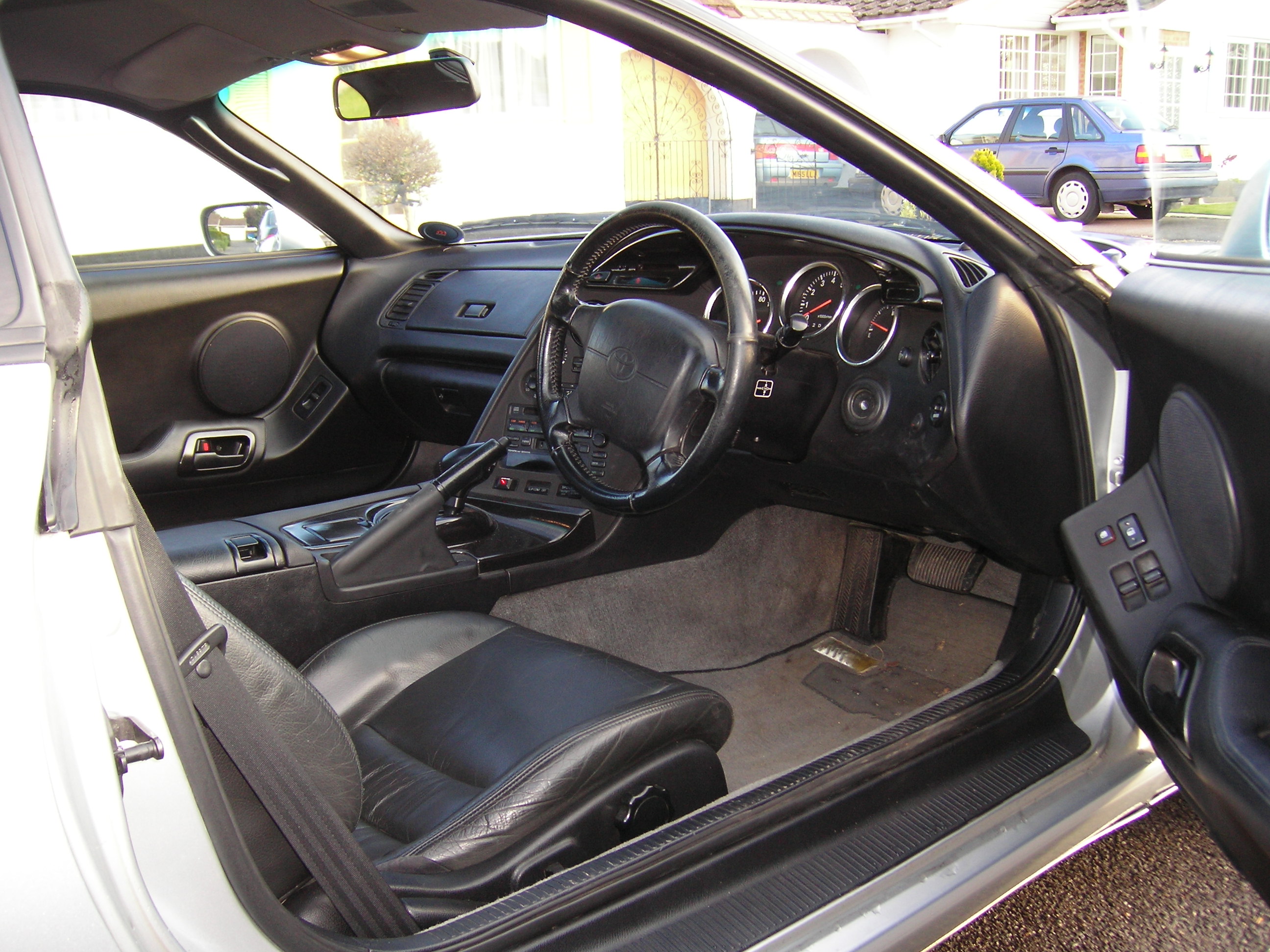

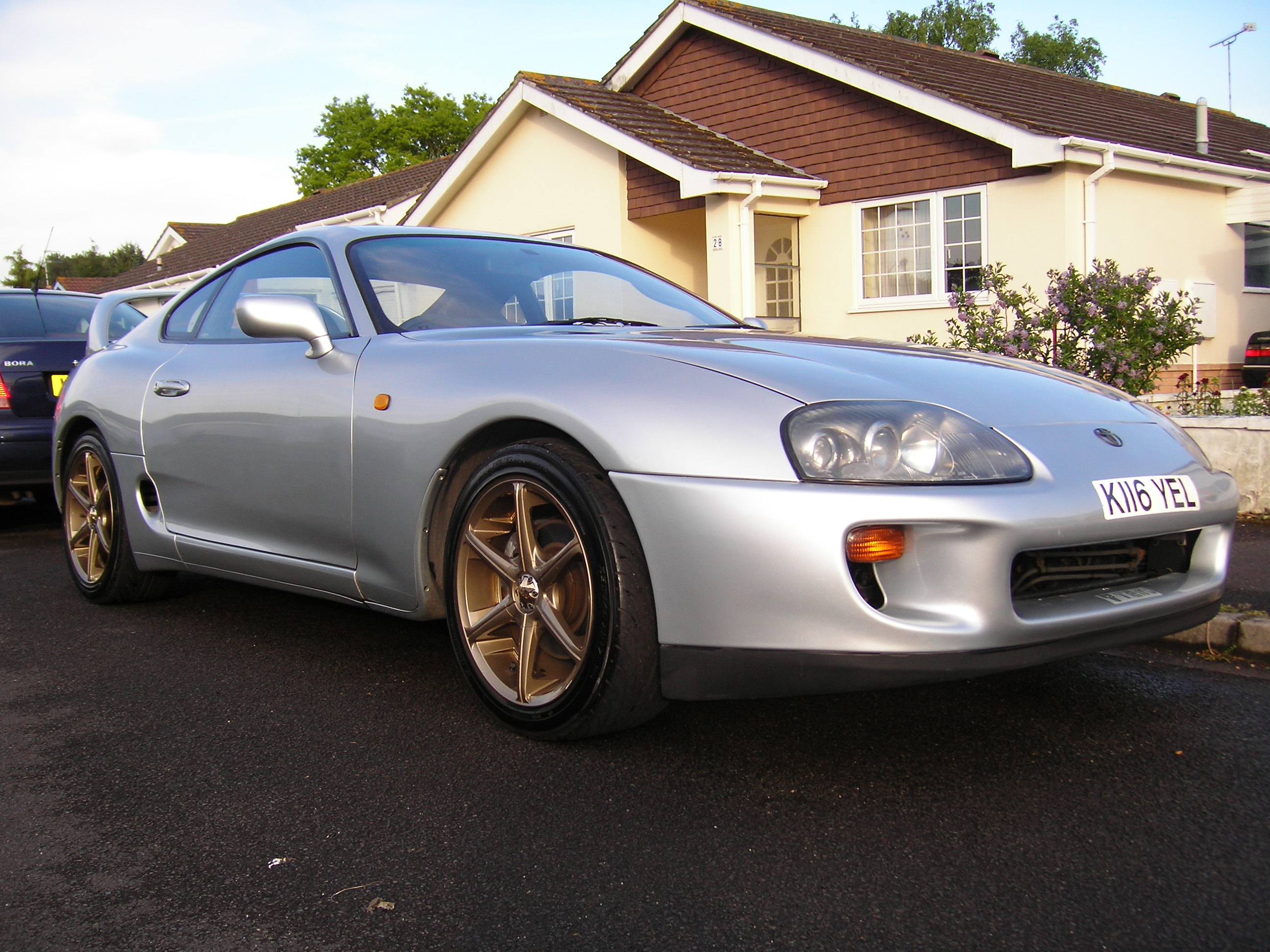

Interior & Exterior



This car is in excellent condition for its year of manufacture and is a superb example.  It comes with chrome dial surrounds, full black leather interior, climate control, electric windows, electric mirrors, electric drivers seat, active front spoiler and even illuminated door lock rings!


Modifications

This car is mechanically standard and has no hole or marks on the dash where performance parts have previously been fitted.  To enhace the awesome looks of this car the following work has been carried out/parts added:

Complete original colour respray.

Clifford Conceprt 300 Category 1 alarm & immobiliser complete with inbuilt turbo timer and 2 carbon effect key fobs.


Performance & Specification

Engine ::

Model

 GZ (Twin Turbo)
Max Power (kw) 246 @ 5600 (330 hp)
Max Torque (nm) 440 @ 3600 (318 ft/lb)
Compression ratio 8.5:1
Induction twin turbo
Transmission 4 spd auto
Bore * Stroke(mm) 86.0 * 86.0
Capacity (cc) 2997
Valves efi/twin cam/24v
Intake valve dia. 33.5 mm
Intake valve lift 7.8 mm
Exhaust valve dia 29.0 mm
Exhaust valve lift 8.4 mm
Intake opening 3 deg BTDC to 41 deg ABDC
Exhaust opening 52 deg BBDC to 4 deg ATDC
Sequential turbos CT12B
Turbine Size 60/48 mm
Compressor Size 62/39 mm
Turbine material Ceramic
Turbo Scroll area 600 (mm^2)
Turbo A/R ratio 0.42

Gearbox                             Auto (A343E)
First                             2.804
Second                                     1.531
Third                             1.000
Fourth                             0.705
Fifth                             n/a
Sixth                             n/a
Reverse                             2.393
Final Drive                             3.769

0 - 60 kph                             2.7
0 - 80 kph                             4.2
0 - 100 kph                             5.1
0 - 120 kph                             8.0
400 m                             13.5 @ 162 kph (100.7 mph)

Rolling start performance 3rd 4th 5th 6th
40 - 70 kph 3.2 4.4 6.5 9.9
60 - 90 kph 3.0 3.7 5.5 8.6
80 - 110 kph 2.9 3.6 4.8 7.3
100 - 130 kph 2.9 3.7 5.2 7.0
Drive  Rear
Suspension-front  wishbones
Suspension-rear  wishbones
Steering  Rack & Pinion
LSD  Torsen LSD
ABS  Yes
Traction control  Yes
Turning circle (m)  10.8 (35.5 ft)
Brakes - front  11.6" 2 pot
Brakes - rear  11.6" 1 pot
Wheels - front  18" * 9.5"
Wheels - rear  18" * 11"
Tyres - front  245/40 - 18
Tyres - rear  275/35 - 18
Kerb Mass (kg)  1490 - 1510
Fuel tank (l)  70 (15.4 gall)
CD  0.33

Length 4,520
Width 1,810
Height 1,275
Wheelbase 2,550
Track (front/rear) 1,520 / 1,525
Ground Clearance 130

100 kph - 0                           120 ft
130 kph - 0                           225 ft
